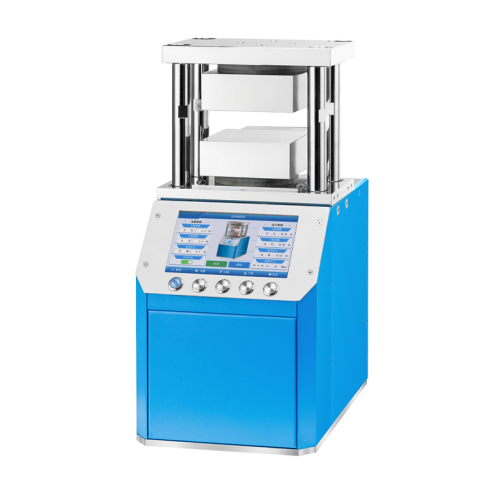

5T Laboratory Compact Automatic Hot Press Machine With 120x120mm Heating Plate
Technical parameters
Model | PP-600C | ||
Heating temperature | RT-300℃ | RT-500℃ | RT-800℃ |
Power | 0.6KW | 1KW | 3.5KW |
Pressure range | 0-5.0T | ||
Pressure accuracy | 0.01 ton | ||
Constant temperature time | 1 second to ∞ seconds | ||
Temperature control accuracy | 0.1℃ | ||
Display screen | 5-inch touch screen | ||
Heating method | Multi-stage heating or cooling programs | ||
Heat insulation method | Imported heat insulation board | ||
Cooling method | Water-cooled rapid cooling [Water-cooled machine is optional] | ||
Mold size | 120*120mm (M*N) | ||
Workspace | 120*55mm | ||
Power supply | 220V/110V can be customized | ||
Size | 250*230*380mm (L*W*H) | ||
Weight | 55kg | ||

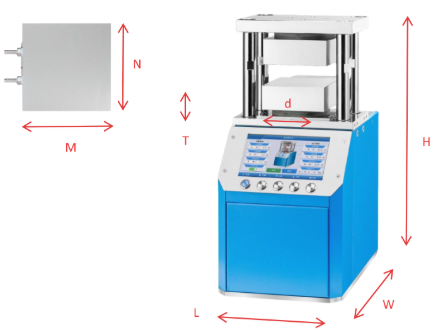

Schematic diagram of dimensions |  | ||
