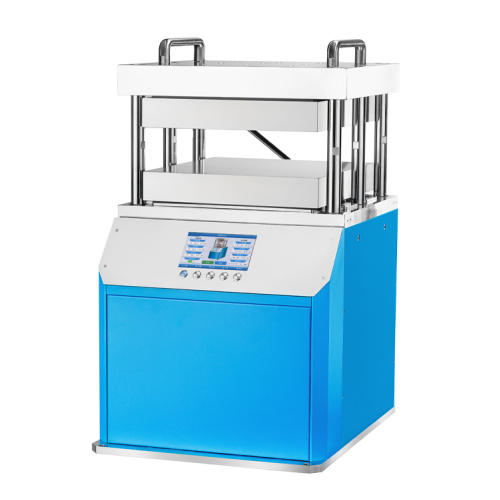

50T Laboratory Automatic Hot Press Machine With 400x400mm Heating Plate
Technical parameters
Model | PP-600F | |
Heating temperature | RT-300℃ | RT-500℃ |
Power | 4KW | 6KW |
Pressure range | 0-50.0T | |
Pressure accuracy | 0.1 ton | |
Pressurization process | The 20-segment program pressurization can display the pressure spectrum | |
Holding pressure time | Each section lasts up to 32,768 seconds and can also work for a long time without timing | |
Constant temperature time | 1 second to ∞ seconds | |
Temperature control accuracy | 0.1℃ | |
Display screen | 7-inch touch screen | |
Heating method | Multi-stage heating or cooling programs | |
Heat insulation method | Imported heat insulation board | |
Cooling method | Water-cooled rapid cooling [Water-cooled machine is optional] | |
Mold size | 400*400mm (M*N) | |
Workspace | 400*80mm | |
Power supply | 220V/110V can be customized | |
Size | 520*580*740mm (L*W*H) | |
Weight | 550kg | |
Schematic diagram of dimensions |  | |
