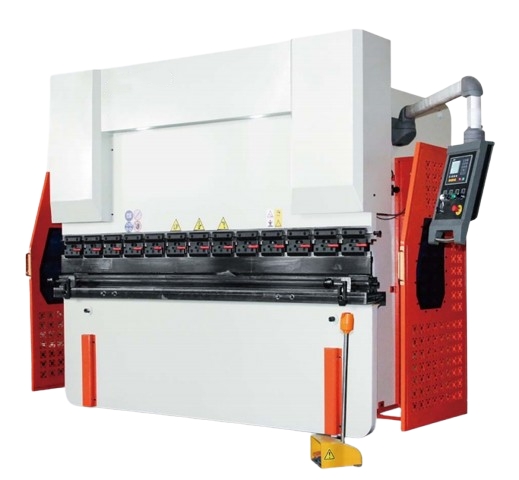

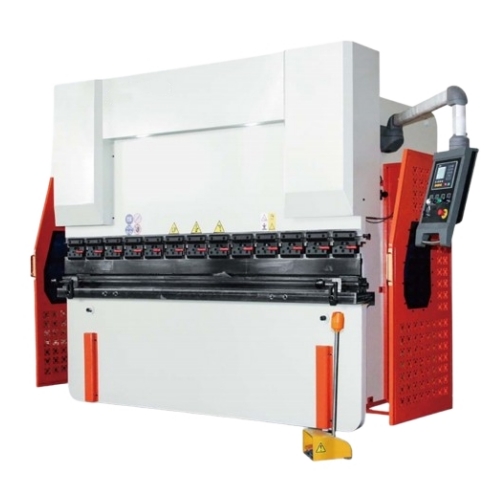

40T-600T Simple Hydraulic CNC Press Brakes
Features
Complete steel-welded structure, with sufficient strength and rigidity
Hydraulic down-stroke structure, reliable and smooth
Mechanical stop unit, synchronous torque and high precision
Back gauge distance and upper ram stroke with electric adjustment,and counter display
Upper tool with tension compensating mechanism,in order to guarantee high precision of bending
E21 CNC system
X-axis and Y-axis drive automatic control
Technical parameter
Model | Nominal force | Worktable length | Columns distance | Throat depth | Slider stroke | Max. height | Power | Dimension |
Unit | KN | mm | mm | mm | mm | mm | KW | L*W*H, mm |
40T/2200 | 400 | 2200 | 1870 | 230 | 100 | 320 | 4 | 2200*1200*1900 |
40T/2500 | 400 | 2500 | 1960 | 230 | 100 | 320 | 4 | 2500*1200*1900 |
50T/2500 | 500 | 2500 | 1960 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
63T/2500 | 630 | 2500 | 1960 | 250 | 120 | 320 | 5.5 | 2500*1300*2210 |
63T/3200 | 630 | 3200 | 2600 | 250 | 120 | 320 | 5.5 | 3200*1300*2210 |
80T/2500 | 800 | 2500 | 1960 | 300 | 120 | 320 | 7.5 | 2500*1400*2300 |
80T/32000 | 800 | 3200 | 2600 | 320 | 120 | 350 | 7.5 | 3200*1500*2300 |
80T/4000 | 800 | 4000 | 3160 | 320 | 120 | 350 | 7.5 | 4000*1500*2400 |
Force & Worktable length can be customized!
