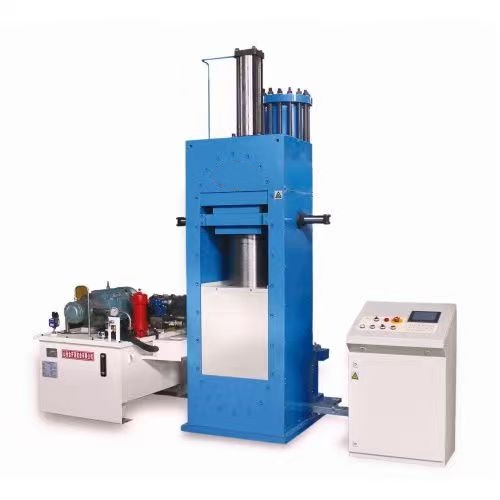

400MPa Hydraulic CIP Cold Isostatic Pressing Machine

Characteristics

The working chamber diameter ranges from 200mm to 600mm, and the working chamber depth ranges from 400mm to 2000mm.

The lifting cover cylinder is installed at the front end of the frame and can be disassembled and assembled as a whole, which is convenient for maintenance.

The design and manufacturing technology is mature, and the reliability of voltage lifting and lowering is high.

To ensure the safe production needs of the press, multiple safety protection devices are installed on the press.

1. Manual pressure relief valve. In case of emergency or malfunction, this valve can be manually opened for pressure relief protection of the press. Only after it is closed can the pressure be raised again.

2. The hydraulic system has a preset pressure value. Once the preset pressure value is exceeded, the relief valve will automatically overflow.

3. Pressure sensors and electrical control systems. When the working pressure exceeds the preset pressure value, the electrical control system automatically stops the operation of the pressure-increasing system.

4. The control cabinet is equipped with a stop button for operation. Once started, the press can be stopped in the middle of any working stage

5. Interlocking of electrical control programs. The press operates strictly in accordance with the working procedures. If the previous procedure is not completed or a fault occurs, the next procedure cannot be carried out and a fault information will be sent. Only after the fault is eliminated can the next procedure be continued.

Technical parameters
