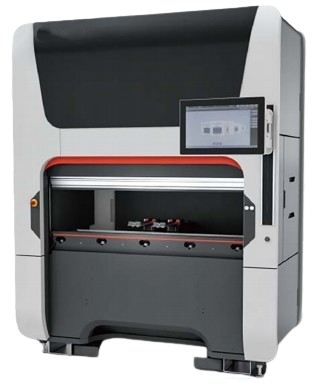

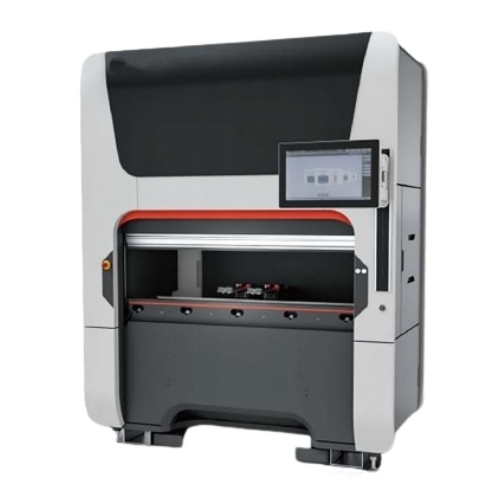

3T-18T High Accuracy Servo Electric CNC Press Brakes
Features
The servo press brake is flexible, reliable and advance bending machine.Servo Electric Press Brake combines high accuracy, flexibility and reliability. This concept offers low power consumption , less maintenance and no hydraulic oil and components for operation.
Technical parameter
Model | EP03-02 | EP60-04 | EP12-06 | EP18-08 |
Pressurization capacity (T) | 3 | 6 | 12 | 18 |
Processing length (mm) | 230 | 400 | 600 | 800 |
Bending stroke (mm) | 120 | 120 | 120 | 120 |
Rear stopper stroke (mm) | 150 | 150 | 150 | 250 |
Number of axes | 2 | 2 | 2 | 3 |
Spindle power (KW) | 2 | 3 | 5.5 | 7.5 |
Speed of the return (mm/s) | 200 | 200 | 200 | 200 |
Work progress speed (mm/s) | ＜30 | ＜30 | ＜30 | ＜30 |
Opening height (mm) | 420 | 420 | 420 | 420 |
Laryngeal opening depth (mm) | - | 150 | 150 | 250 |
Column spacing (mm) | 250 | 370 | 520 | 770 |
