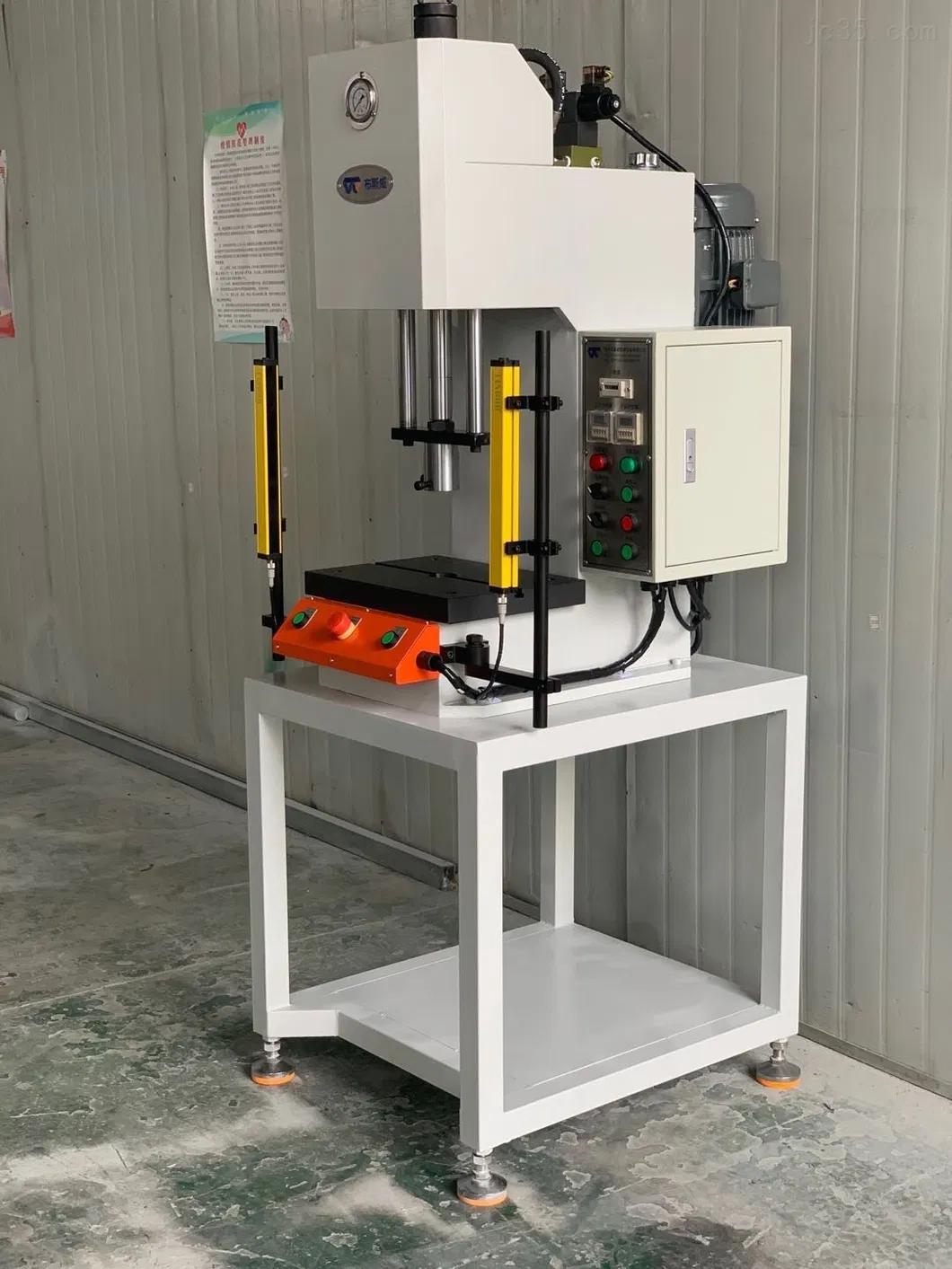

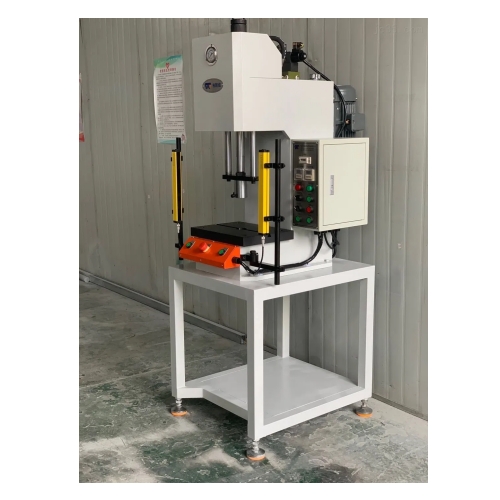

3T-10T Benchtop Single Column Servo Hydraulic Oil Press
Introduction
This series of hydraulic presses are widely used in press fitting, assembly, punching, embossing,shaping,riveting of various materials. Bending, shearing, stretching, press fitting and assembly of various small parts.lt is a multi-purpose press.
C-type hydraulic press, simple structure, light weight, can be placed on the workbench or production line.
Features
1. Adjustable hydraulic cylinder for precise positioning of the press-fit stroke.
2. The slider is controlled by up and down timers, which is easy to operate and easy to maintain
3. The pressure adjustment range is wide, and the minimum output can be adjusted to 500kgf.
4.With manual automatic two working modes.
5.Optional rack placement.
6.Can be customized according to customer requirements.
Technical parameter
Model | BSW03-3T | BSW03-5T | BSW03-10T | |
Nominal pressure(T) | 3 | 5 | 10 | |
Maximum working pressure of liquid(Mpa) | 21 | 21 | 1 | |
Surface height mm | 800 | 800 | 800 | |
Maximum opening distance mm | 300 | 300 | 300 | |
Maximum stroke (mm) | 200 | 200 | 200 | |
Workbench size | Left and right mm | 350 | 350 | 500 |
Before and after mm | 250 | 250 | 300 | |
Speed | Rated load speed mm/s | 85 | 85 | 85 |
Working speed mm/s | 85 | 85 | 85 | |
Main frame size mm | 500x600x1200 | 500x600x1230 | 600x700x1430 | |
Power (KW) | 2.2 | 2.2 | 2.2 | |
