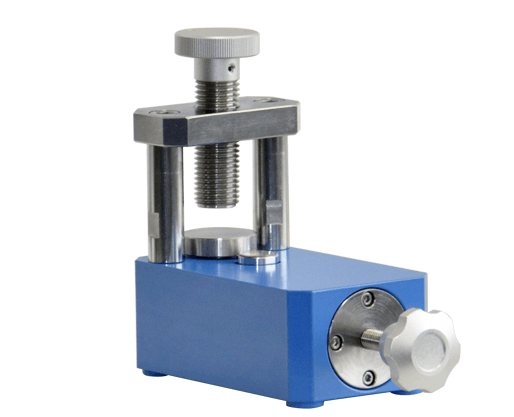

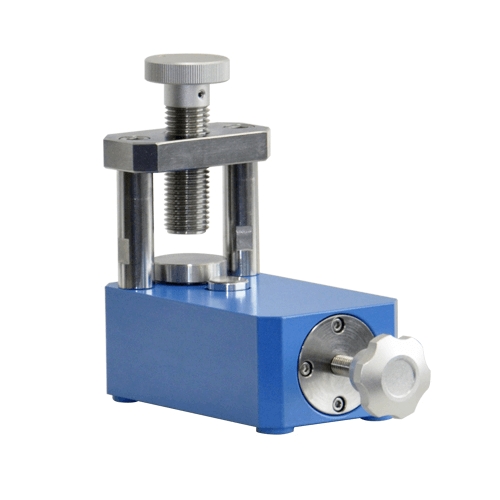

2T Mini Laboratory Benchtop Powder Hydraulic Press Machine
Parameter
Model | PC-2T |
Pressure range | 0-2T(30Mpa) |
Piston diameter | 28mm(d) |
The biggest piston itinerary | 5mm(T) |
Stability of pressure | ≤1MPa/10min |
Diameter of working table | Φ45mm(D) |
Column number | 2 columns |
Column spacing | 54*55(M*N) |
Overall dimensions | 100*220*220(W*L*H) |
Weight | 4.8Kg |

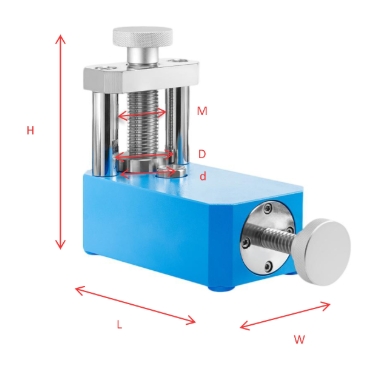

Dimension diagram of tablet press |
|
